*Currently out of stock. For ETA, please email Matt: matt@nodo.film
About
CANBUSTER is an interface device made by Ignite Digi Australia and Signal Audio, available through NODO, that attaches to the DJI Transmission Monitor and plug into the AUX port on the Inertia Wheels. It allows any compatible remotely connected DJI product to be controlled by the Inertia Wheels.
Details
For Inspire 3 and Ronin 4D, control more than just the gimbal: focus, iris and zoom.

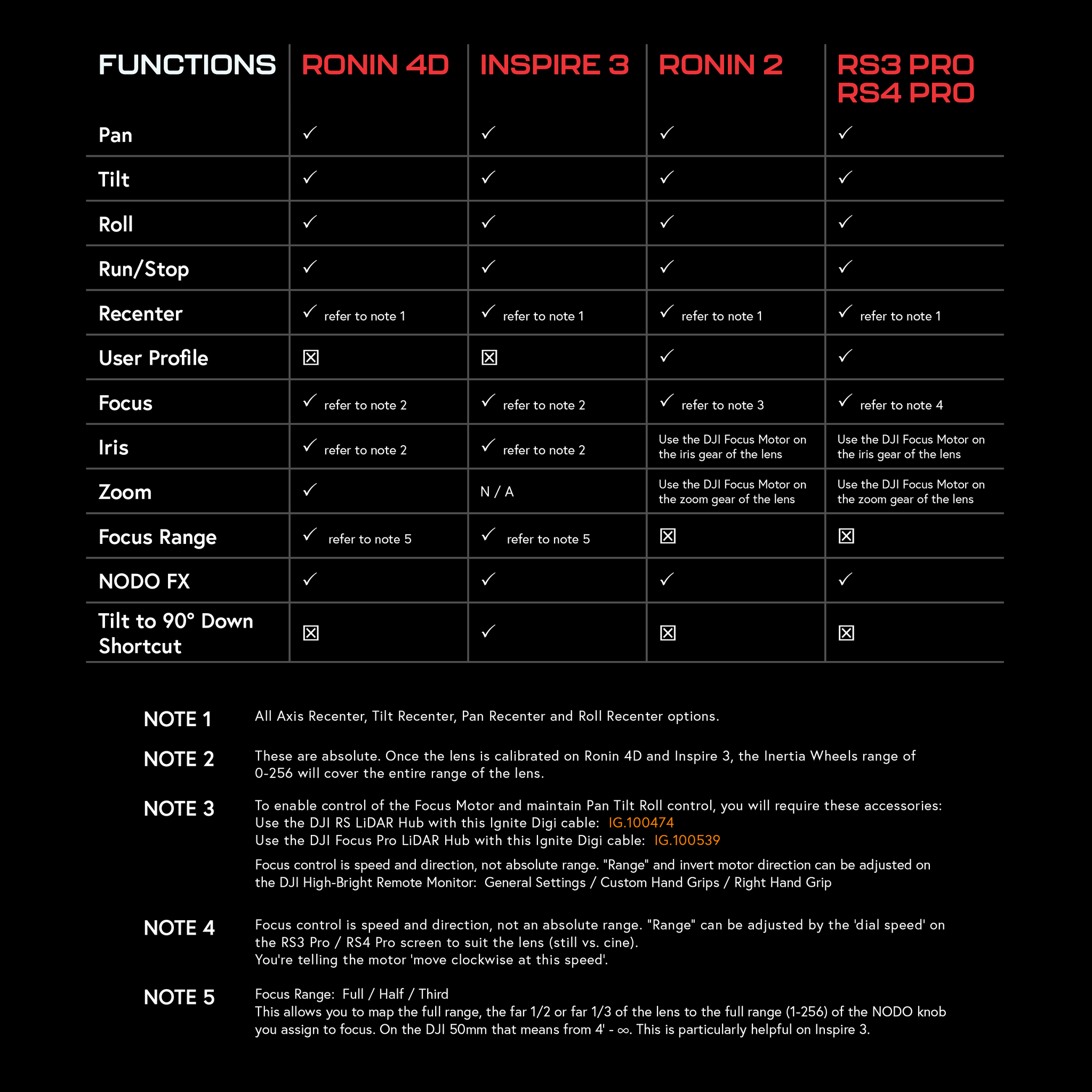

Check the function table for the full list.
Get the cleanest build possible by sending both Inertia Wheels control data and wireless video over DJI Transmission. Fewer cables. Fewer boxes.
Take advantage of Transmission's ultra-long wireless range of up to 4 miles to come up with truly extreme shots!
If you're purchasing to use with DJI Inspire 3 and need your 1st AC to have FIZ control, then you'll need Control Link
KEY FEATURES
● Plug and play! — no additional software required
● Inertia Wheels require firmware version V2.0.2 or later, we recommend V2.2.2 → Update now
● CANBUSTER is compatible with 2-Axis and 3-Axis Inertia Wheels Brushless and Inertia Wheels MAX
● CANBUSTER is super fast to mount and dismount. It slides into the hand grip slot of the DJI High-Bright Remote Monitor cage and works on either side
● CANBUSTER draws a small amount of power from the DJI High-Bright Remote Monitor via pogo pins
For more info or support, visit the Ignite Digi Wiki
—
CONTROL CABLES
CANBUSTER ships with a 24-inch Control Cable (9-Pin Lemo to 5-Pin Lemo).
24-inch / 60cm is just the right length for when the DJI High-Bright Monitor is mounted directly to Inertia Wheels, or mounted to a nearby stand at standing height.
Select 8ft / 2.4m for situations when you need to seperate the Wheels from the DJI High-Bright — for example, when one operator uses a SmallHD monitor at one end of the cart, and another crew member uses the DJI High-Bright at the other.
The 98ft / 30m is mainly designed for drone crews — when you have an operator positioned in a tent, room or vehicle, and have the connected DJI High-Bright Monitor mounted outside, high up on a stand or EWP, to achieve maximum signal range on set.
Includes
- CANBUSTER
- 24in AUX to 5-Pin Cable
Compatibility

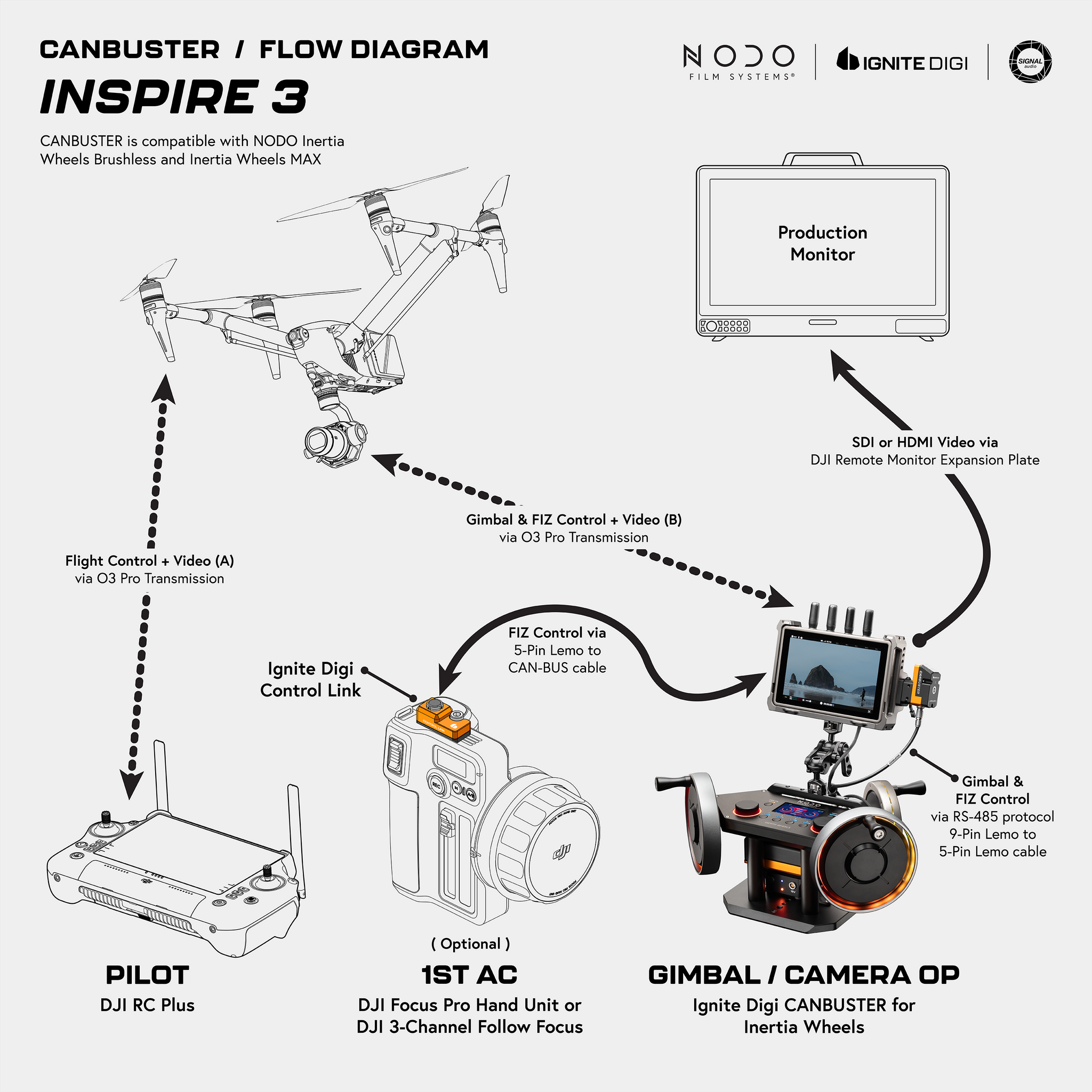

Using CANBUSTER + DJI Transmission High Bright Monitor, Inertia Wheels can control the following:
- Ronin 4D
- Pan/Tilt/Roll (PTR) + Run/Stop + Recenter + Focus/Iris/Zoom + Mode Change + AF/MF
- Inspire 3
- PTR + Run/Stop + Recenter + Focus/Iris
- + AF/MF
- Ronin 2
- PTR + Run/Stop + Recenter
- + AF/MF with LIDAR Hub
- RS3 Pro
- PTR + Run/Stop + Recenter + Focus
- + AF/MF with LIDAR Hub
Feature Notice
At present, Inertia Wheels FX do work with CANBUSTER since V2.2.2 Inertia Wheels firmware.
Playback/Record is still not compatible, as they are processed in the Inertia Wheels Receiver which is bypassed with the CANBUSTER. A future firmware update for the Inertia Wheels is planned to enable these features.
